The new HI6000 Series modular multiparameter touchscreen laboratory system is designed for research and laboratory professionals who demand impeccable measurement quality.
Accurate & Reliable
The new HI6000 Series modular multiparameter touchscreen laboratory system is designed for research and laboratory professionals who demand impeccable measurement quality.
HI6000 is a fully flexible laboratory measurement platform that can be customized according to the user’s measurement and application needs. Developed and designed using the latest generation technologies it gives users complete control over their measurements and total confidence in their results. Multi-point calibration (up to 5 points) guarantees the highest possible accuracy.

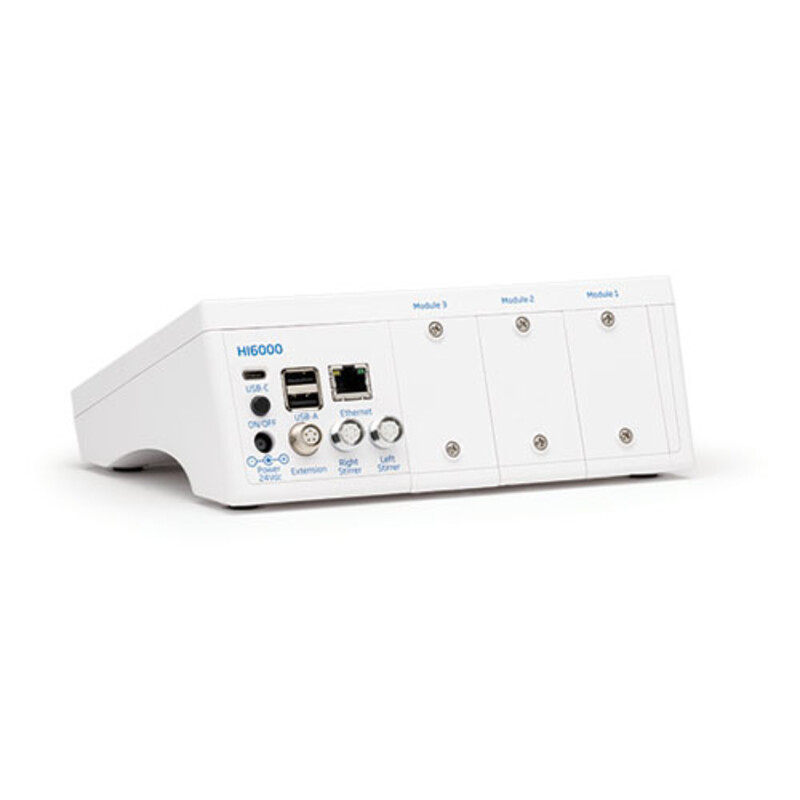

Modular by nature, it allows simultaneous installation of three of the four modules offered by Hanna Instruments: pH/redox, pH/redox/ISE, dissolved oxygen and conductivity. Combined with the appropriate sensors, the device provides fast, reliable measurements displayed on the large touchscreen.
A context-sensitive help menu and tutorial videos accompany the user through all operations, making it easy to get to grips with the instrument.
Users can configure the instrument to suit their own needs. The instrument features numerous functions to simplify and optimize work routines, such as a wide choice of display modes, installation of application profiles for immediate access to recurring methods, and versatile connectivity for data storage and sharing.
Go Modular
Flexibility and expandability

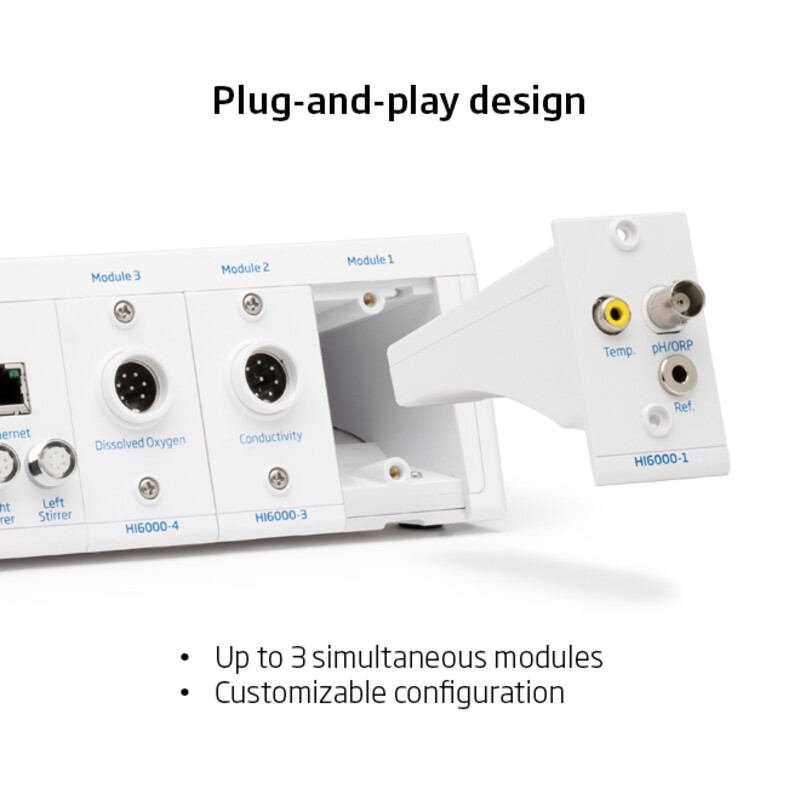

Easily install and swap modules. Any combination of 1 to 3 modules can be used.
- Multiparameter measurement flexibility
- Plug-and-play design
- Effortless installation
Module options
Up to three measurement modules maybe easily installed into the HI6000 housing (sensors purchased separately). This can be any combination of the available modules.
| Module | HI6000-1 | HI6000-2 | HI6000-3 | HI6000-4 |
| Sensor | pH/ORP | pH/ORP/ISE | EC | DO |
| Details | ORP: separate sensor required | Incremental Methods ISE | Supports measurement high purity water used in pharmaceutical industry | Supports DO applications for batch analysis multiple samples: OUR, SOUR, BOD |

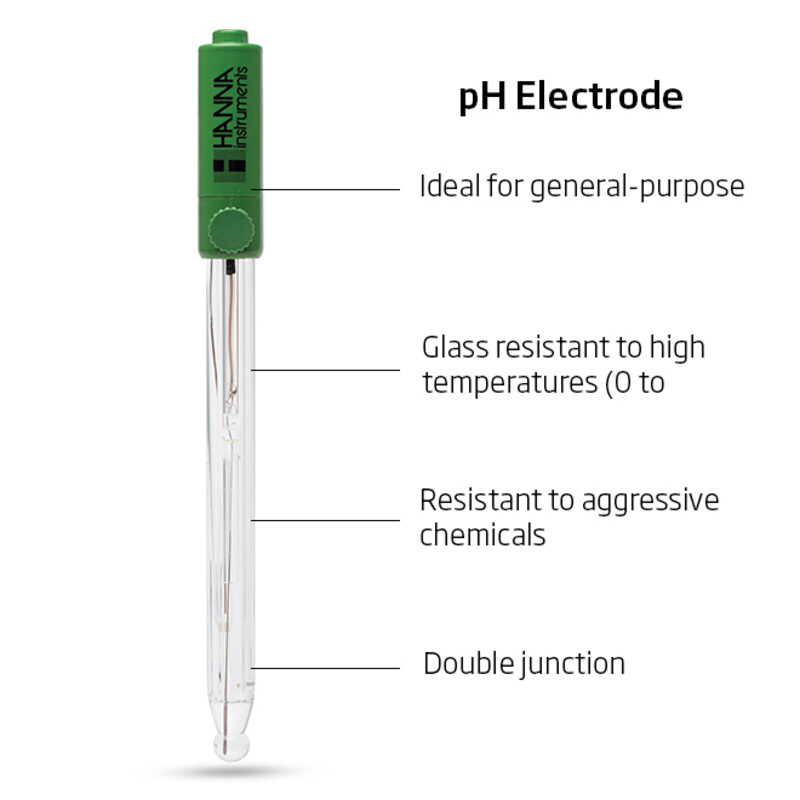

| Recommended probes | HI1131B Refillable pH HI7662-TW temperature |
HI1131B Refillable pH HI7662-TW temperature Ion Selective Electrodes |

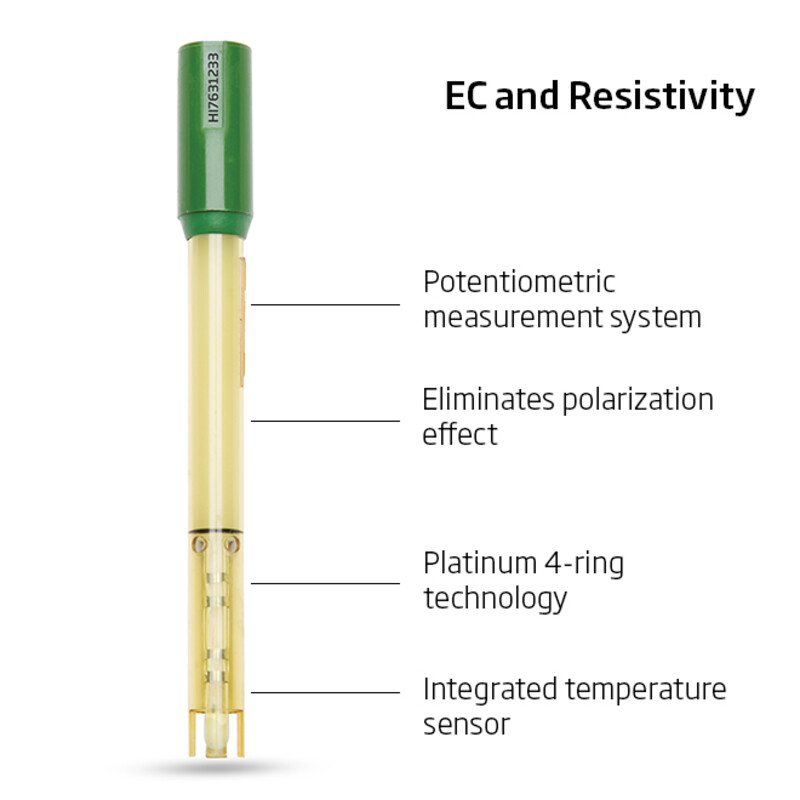

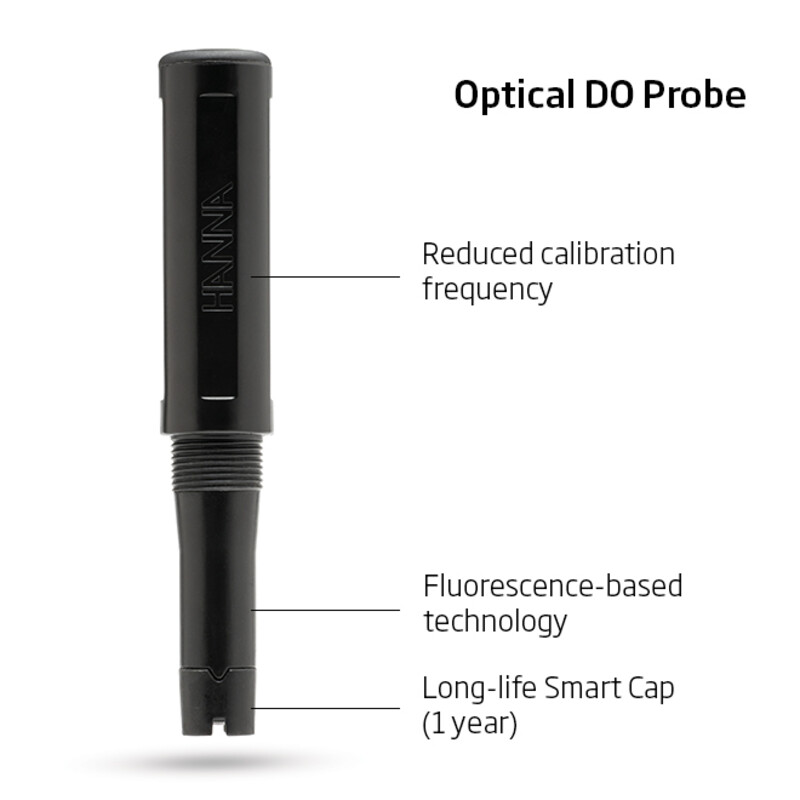

HI7631233 EC/resistivity | HI7641133 Optical DO HI764833 Polarographic DO |
Save space on your workbench!
Probe holder

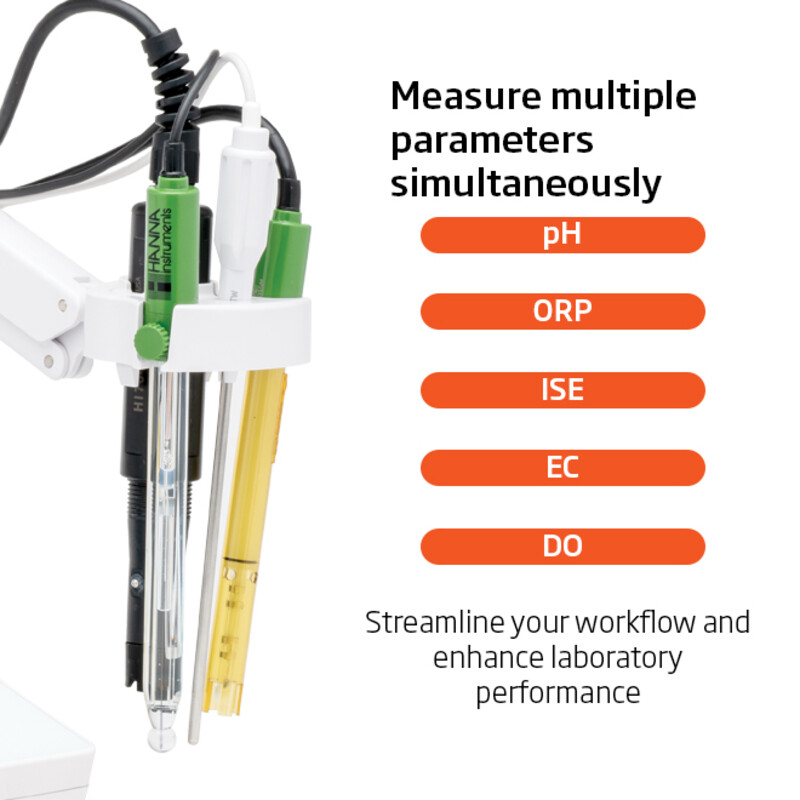

- Probe holder supplied for up to 3 probes + 1 temperature sensor

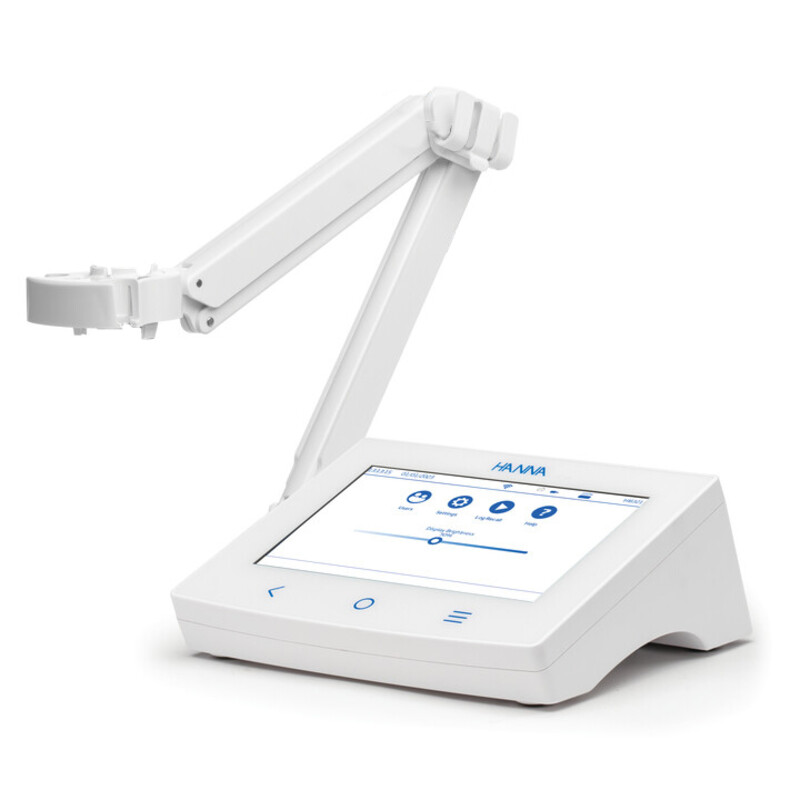

- Each instrument is supplied with the HI764060 electrode holder with flexible arm. It can be securely fixed to either side of the instrument.
Magnetic stirrer
- Drive a magnetic stirrer directly from the HI6000 modular system
Go Digital

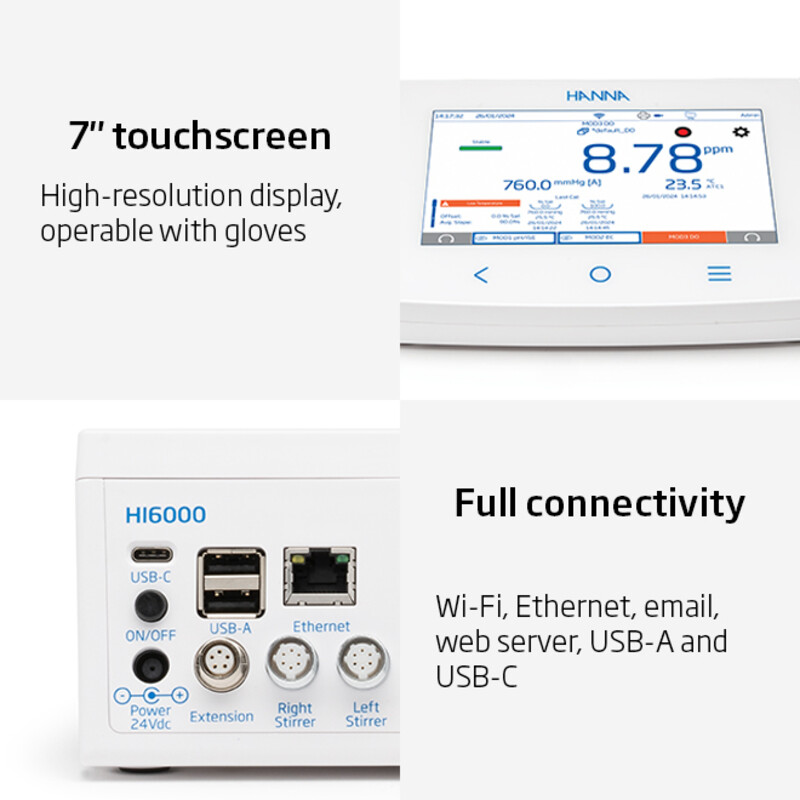

Connectivity features and services
• Transfer logged data to a USB flash drive
- Log files include measurements and calibration data (as .CSV file)
- FTP and email for log export via Ethernet and Wi-Fi connection
- Download logs using the meter’s embedded web server
- USB type A for USB drive, printer (standard or thermal), and keyboard
- USB type C for USB drive and PC connection
Logging
• Active log during measurement
- Data log collection of at most 1,000,000 data points, with time and date stamp
- Logging types: manual, automatic, autohold
- Sample ID for manual and autohold data
Seamless Simplicity

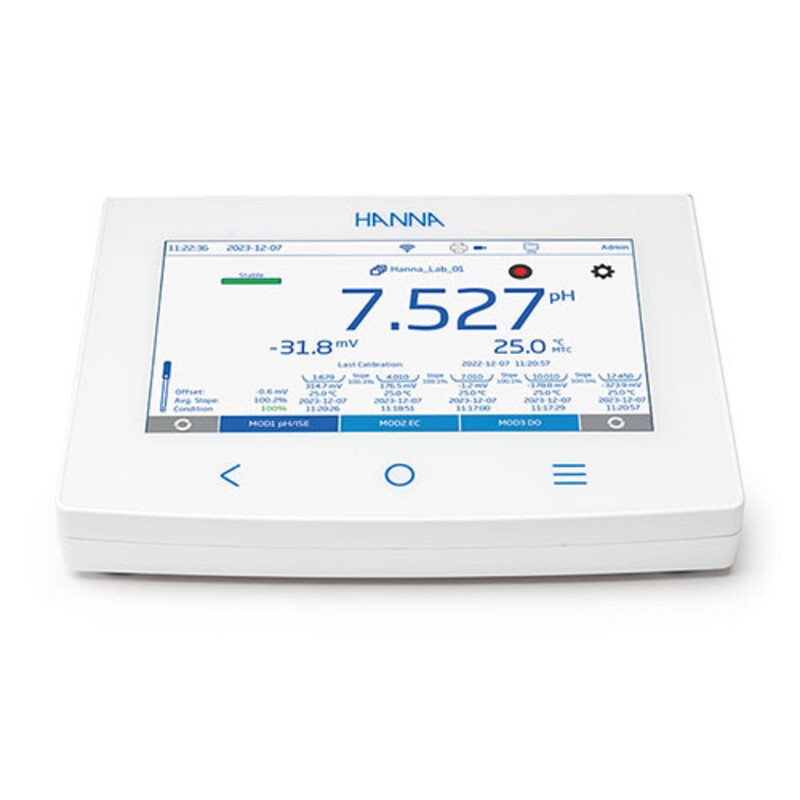

Multiple screen configurations Up to 3 measurements can be shown on screen simultaneously. Views can be mixed and matched.
Great user experience
User-friendly interface
- 7” (17.8 cm) capacitive touchscreen with multi-touch support
- Capacitive touch keys for back, home and menu system buttons
- User-friendly icons and symbols enable easy navigation and interpretation of instrument functions
- Choice of five different display modes: Standard, Simple GLP with calibration information, Full GLP with electrode status and calibration point details, Interactive graph updated in real time, Tabulated data with date, time and notes

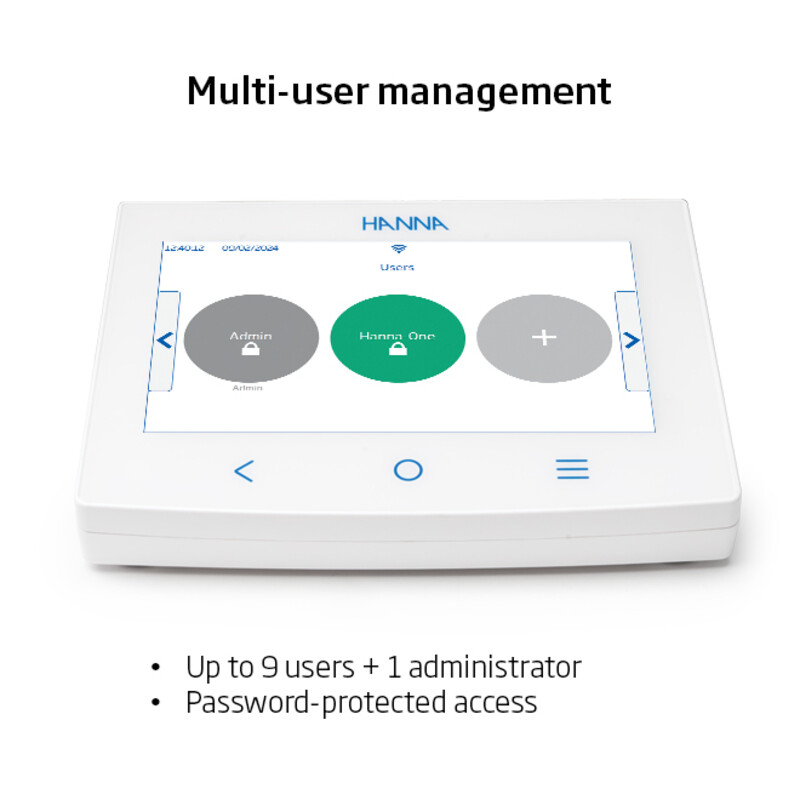

10 User-Profiles
• For direct access to daily analyses, users can save their procedures in profiles grouping together all their method configuration data.
On-board help and video tutorial
- The HELP menu supports users with a brief overview of the system’s main functionalities through text and video tutorials.
Stay Secure
Keep your measures accurate

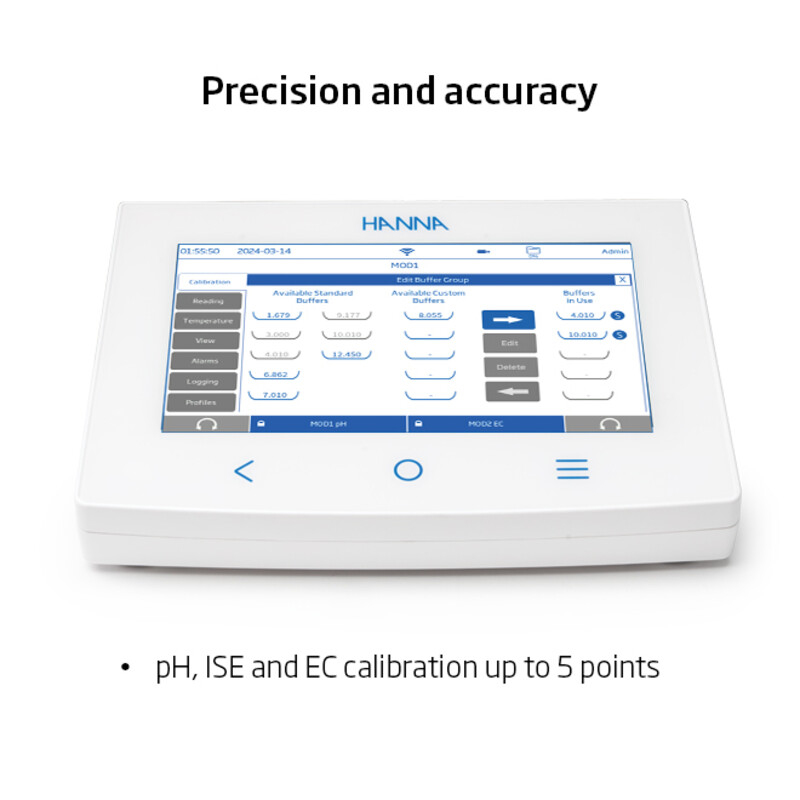

Multi-point calibration for optimum results :
- pH calibration up to 5 points with 8 stored standard buffers and 5 custom buffers
- ISE calibration up to 5 points with 5 stored standards and 5 custom buffers
- Conductivity calibration up to 5 points with 6 stored standards and 1 user standard HI6000 automatically recognizes the closest buffer to the pH value being measured from all available (standard and custom) buffers in the buffer group.
Need Certification?
The calibration certificate specifies the corrections to be applied to your measurement results, making them more accurate.
For organizations involved in quality management systems, standardization guidelines strongly recommend regular calibration and maintenance of measurement systems, validated by a calibration certificate which can be checked during an audit.
“Measuring equipment needs to be checked periodically. With Hanna Instruments calibration services, you can ensure the reliability and quality of your measuring equipment. You optimize their smooth operation and reduce your costs.”
Need support?
Our technical team is here to help you :
- Phone support
- Quick assistance
- Advice on choosing the right electrodes for your application
- Calibration services
- Repairs on our premises
Configure kit: choose up to 3 modules to create your ideal meter
