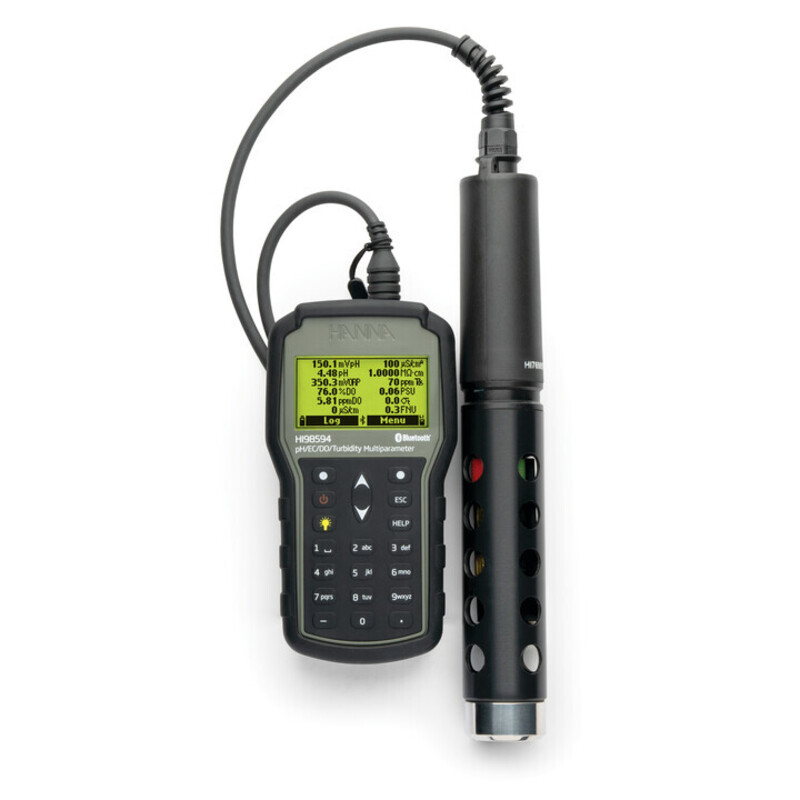

Multiparameter portable pH/EC/turbidity/OPDO meter with HI7698594/50 probe, 50m cable
HI98594/50

Precision In Your Palm

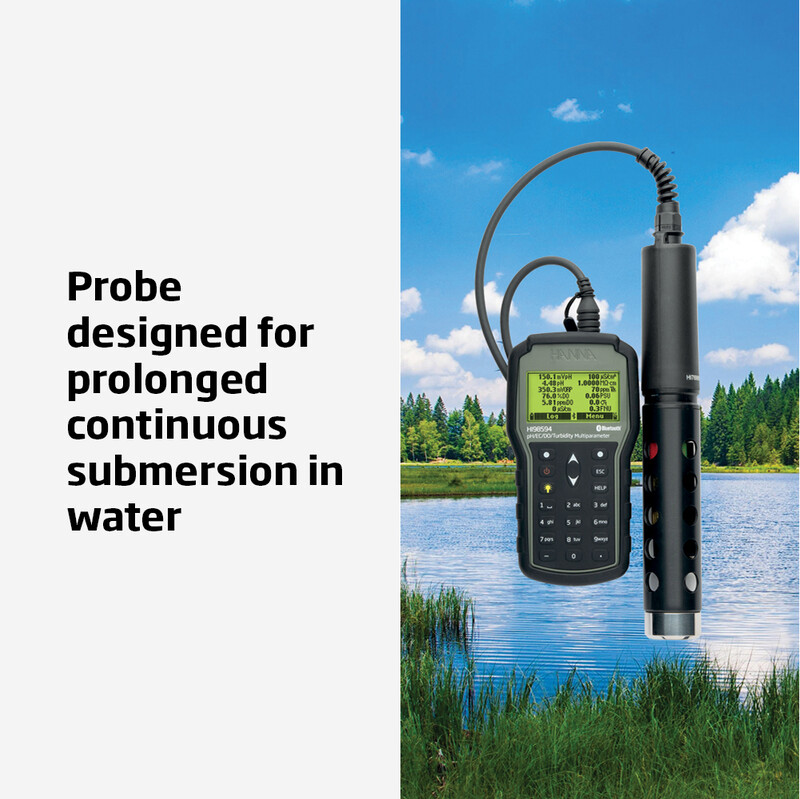

The HI98594, designed to withstand harsh environmental conditions, measures 14 parameters and is ideal for field measurements. Within the Hanna Instruments family of multiparameters, it stands out for its ability to measure turbidity. The meter meets IP67 standard (30 minute immersion at a depth of 1 m) and the multi-sensor probe is totally sealed against water and dust, meeting IP68 standard (continuous immersion in water).

HI98594 is an ideal instruments for your sector: Surface water, Sea water, Waste water, Education & Research, Ground Water, Aquaculture, Contruction & Environmental Remediation.

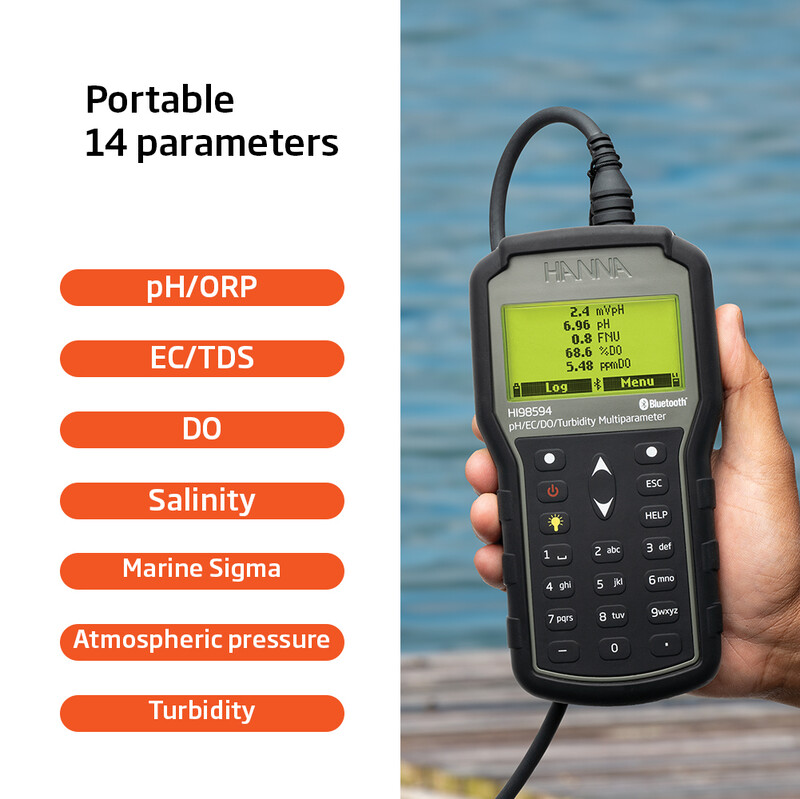

Measure 14 parameters

• pH • mV • ORP • Dissolved Oxygen (ppm) • Dissolved Oxygen (%) • EC • EC (absolute) • Resistivity • TDS • Salinity • Seawater σ • Turbidity • Atmospheric Pressure • Temperature

HI98594 can display from 1 to 12 parameters simultaneously, selectable by the user.

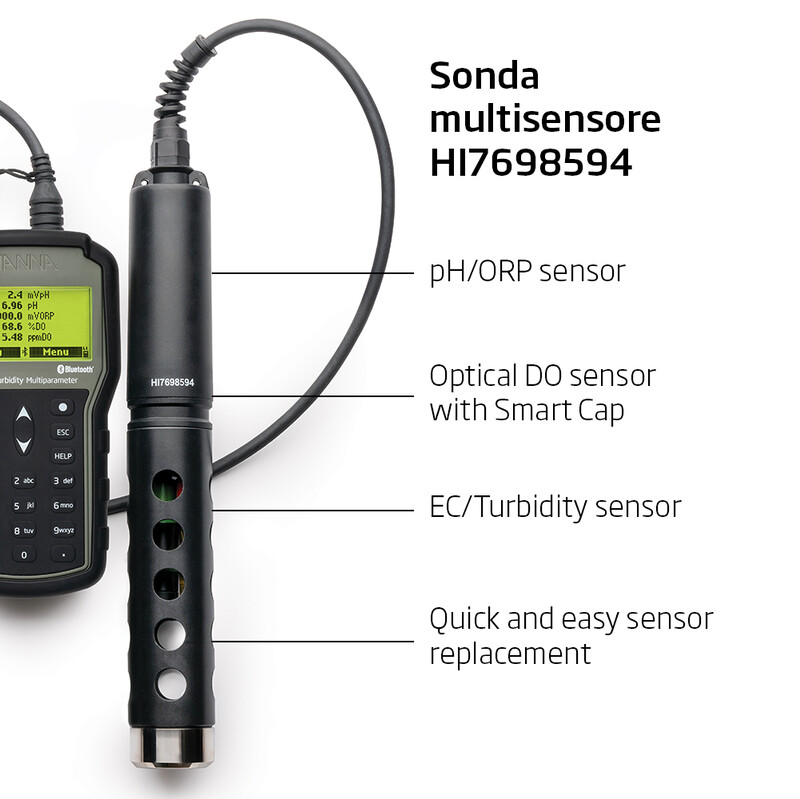

A multi-sensor probe HI7698594

HI7698594 has three screw type connectors that are color coded for easy and automatic sensor identification. It is supplied with protective shield, and its waterproof design makes it ideal for difficult application.

• Pre-installed pH/ORP, EC/Turbidity and optical DO sensors
• Sensor replacement is quick and easy

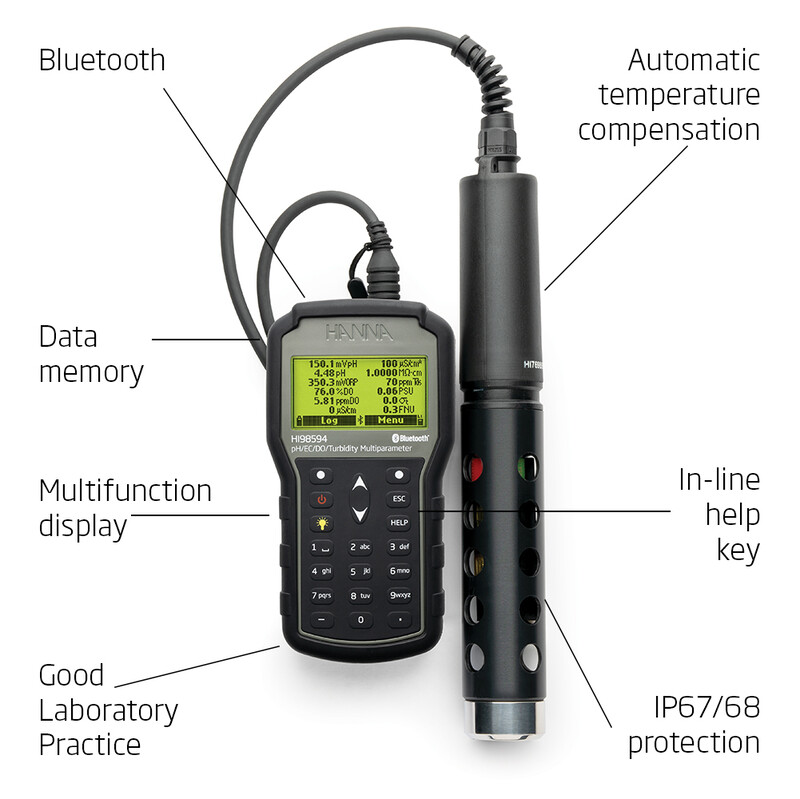

High precision wherever you go

• The compact size of HI98594 ensures easy portability and convenient use, even in the most challenging environments

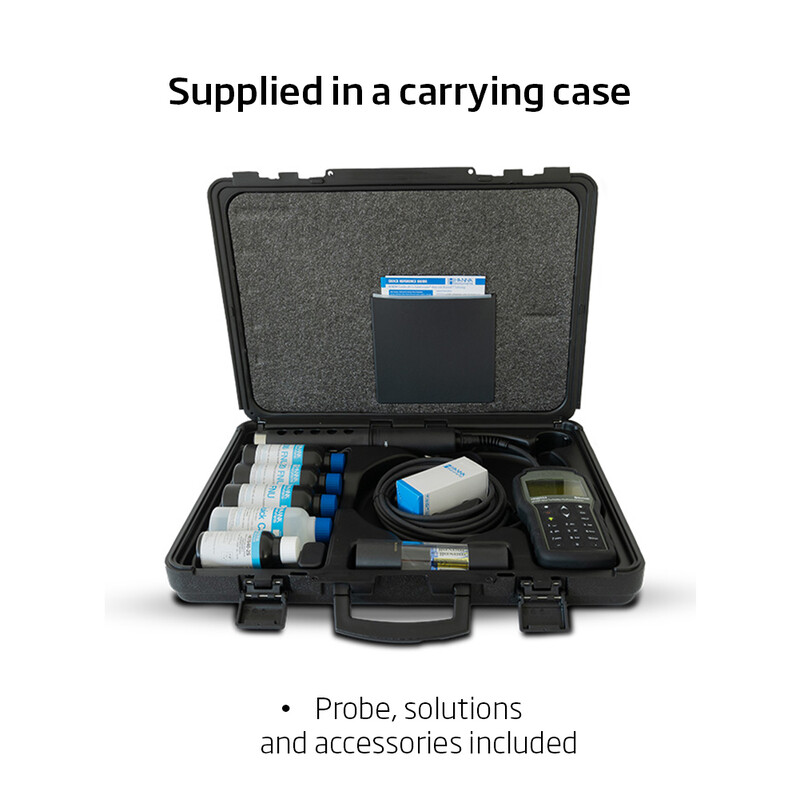

• HI98594 is supplied with rugged carrying case, designed to provide years of use and maximum protection. The inside compartment of the carrying case is thermoformed to securely hold and protect all of the components

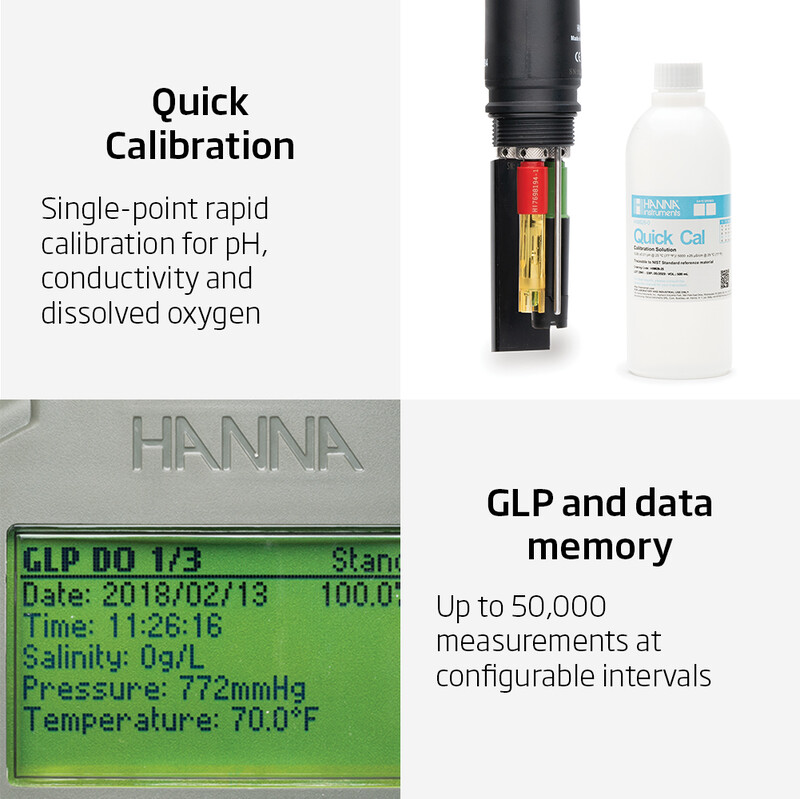

Data logging

• Automatic storage for up to 50,000 samples at intervals (1 second to 3 hours)
• Log-on-demand to store measurement data.
• Access .CSV file via computer

Smart solutions for smarter water testing

• Log on demand and automatic logging for all parameters: HI98594 allows to log one data point or continuously log at selected time intervals. All logs have the option to store data into a named lot and the ability to add comments
• Bluetooth 5.0 Connectivity and Hanna Lab: Using the Bluetooth connection and Hanna Lab app, logged data batches can be easily transferred to a smart device for review or shared as an e-mail. Automatic firmware updates for the meter via the Hanna Lab app

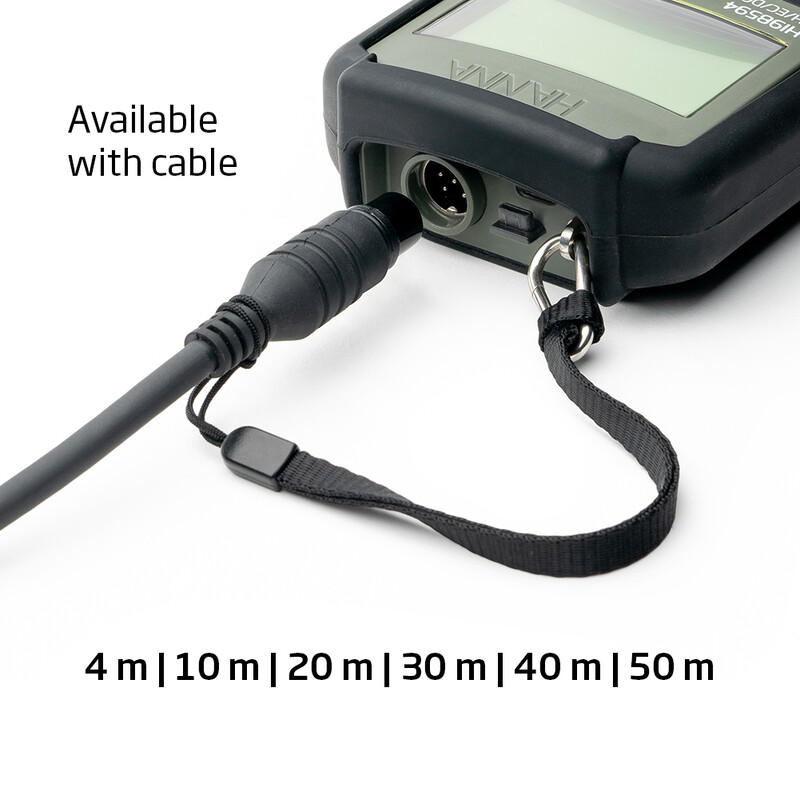

Quick-DIN for waterproof connection

The meter connects to the multiparameter probe through a single waterproof connector, making attaching and removing the probe quick and easy. The meter automatically detects the probe when connected.

Data Transfer & Charging

The USB Type-C port provides for easy data transfer to memory stick, PC, or other compatible devices and is used to charge internal lithium-ion battery.

Dual power supply

The instrument operates with a built-in lithium-ion battery. When the rechargeable battery is low the meter will automatically switch to 1.5 AA alkaline batteries.

HI7698194-1

Combined pH/ORP sensor

• PEI-body pH sensor with a glass tip
• Platinum Sensor for ORP
• Double junction reference with gel KCl electrolyte

HI7698594-4

New Combined EC/Turbidity sensor

• Four-electrode conductivity sensor
• Turbidity Sensor that meets the requirements of ISO 7027 standards
• Turbidity range from 0.0 to 1000 FNU

HI7698594-5

Optical Dissolved Oxygen sensor

• No need for frequent calibrations
• Quick readings and great stability
• High precision at very low oxygen values
• Ideal for difficult applications
