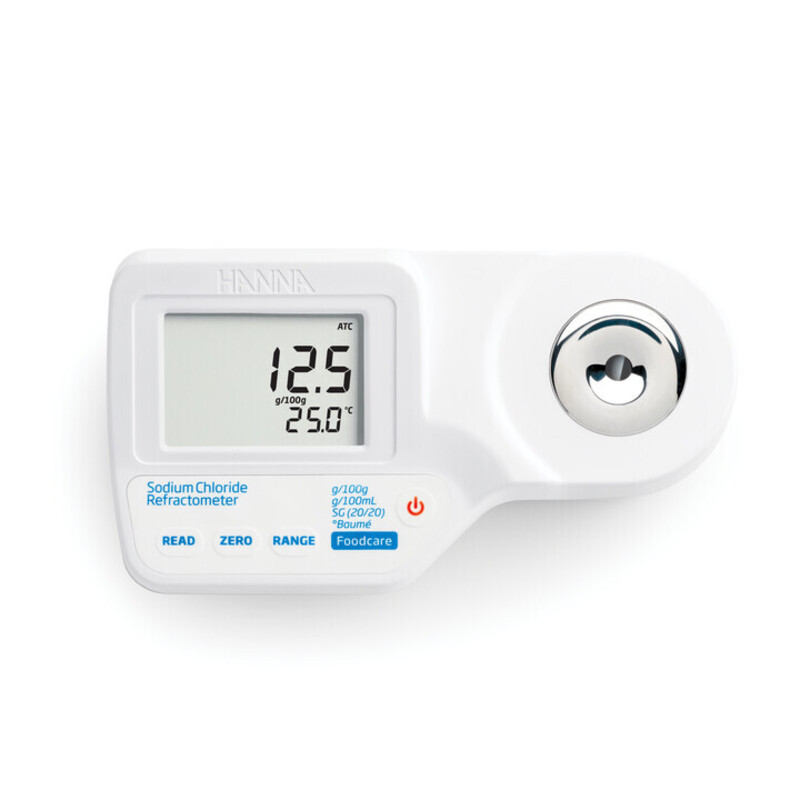

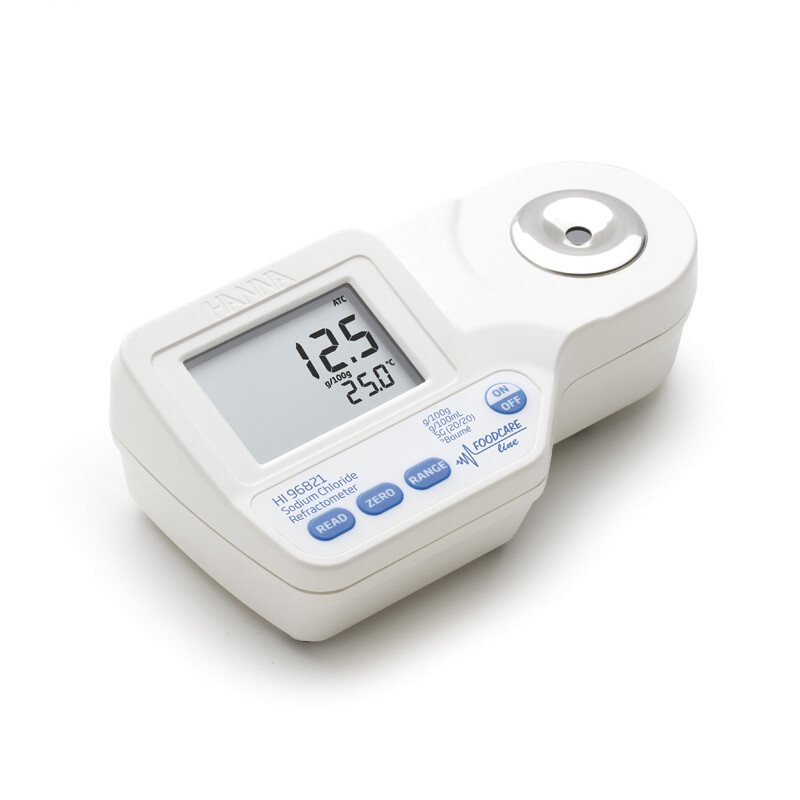

Sodium chloride refractometer
HI96821

The HI96821 is a rugged, portable digital refractometer designed for sodium chloride (NaCl) measurement. The HI96821 displays NaCl concentration four different ways: g/100 g, g/100 mL, specific gravity, and °Baume. The instrument’s high accuracy and simple operation gives reliable results each and every time. All readings are automatically compensated for temperature variations and displayed with a 1.5 second response time. The sealed flint glass prism and stainless steel well are easy to clean. Just wipe with a soft cloth in preparation for the next sample.

Sample size as small as 2 metric drops (100 μl)
Sealed stainless steel well with high-grade optical prism made of flint glass
Fast 1.5 second response time for temperature compensated readings

Skip to the end of the images gallery
Skip to the beginning of the images gallery
More Information

The HI96821 portable refractometer converts the refractive index of a food sample to g/100 g, g/100 mL, specific gravity and °Baume. These conversions are based on internationally recognized references for unit conversion. The HI96821 is ideal for the analysis of salad dressings, cheeses, condiments, canned and jarred foods, soups, brines and whey. The HI96821 is an easy to use tool for measuring sodium chloride in foods, whether on the production line or in the lab./p>

Designed for sodium chloride analysis in foods
Automatic Temperature Compensation
High accuracy measurements in g/100 g, g/100 mL, specific gravity and °Baume

Making a Standard NaCl Solution (g/100 g)

To make an NaCl Solution, follow the procedure below:

Place container (such as a glass vial or dropper bottle that has a cover) on an analytical balance.
Tare the balance.
Weigh out X grams of high purity dried Sodium Chloride (CAS #: 7647-14-5: MW 58.44) directly into a beaker
Add distilled or deionized water to the beaker so the total weight of the solution is 100g.

Example 10g/100 g NaCl:

NaCl (g) Water (g) Total (g)
10.000 90.000 100.000

[refractive index]

Refractive Index

The HI96821 takes measurements based on a sample’s refractive index. Refractive index is a measurement of how light behaves as it passes through the sample. Depending on the sample’s composition, light will refract and reflect differently. By measuring this activity with a linear image sensor, the sample’s refractive index can be assessed and used to determine its physical properties such as concentration and density. In addition to the linear image sensor, the HI96821 uses an LED light, prism and lens to make measurement possible.

Variations in temperature will affect the accuracy of refractometry readings, so the use of temperature compensation is highly recommended for reliable results. The HI96821 contains a built-in temperature sensor and is programmed with temperature compensation algorithms in accordance with internationally recognized references which vary based on the parameter being measured.

Features at-a-glance:

One-point calibration

Calibrate with distilled or deionized water

Small sample size

Sample size can be as small as 2 metric drops (100 μl)

Automatic Temperature Compensation (ATC)

Samples automatically compensated for temperature variations

Quick, accurate results

Readings are displayed in approximately 1.5 seconds

Dual-level LCD

The dual-level LCD displays measurement and temperature readings simultaneously

Stainless steel sample well

Easy to clean and corrosion-resistant

Battery indicators

Battery percent level remaining at startup and low battery indicator

Automatic shut-off

To conserve battery life the meter shuts off automatically after three minutes of non-use

IP65 water resistant protection

Water resistant ABS plastic casing designed to perform under laboratory and field conditions.
