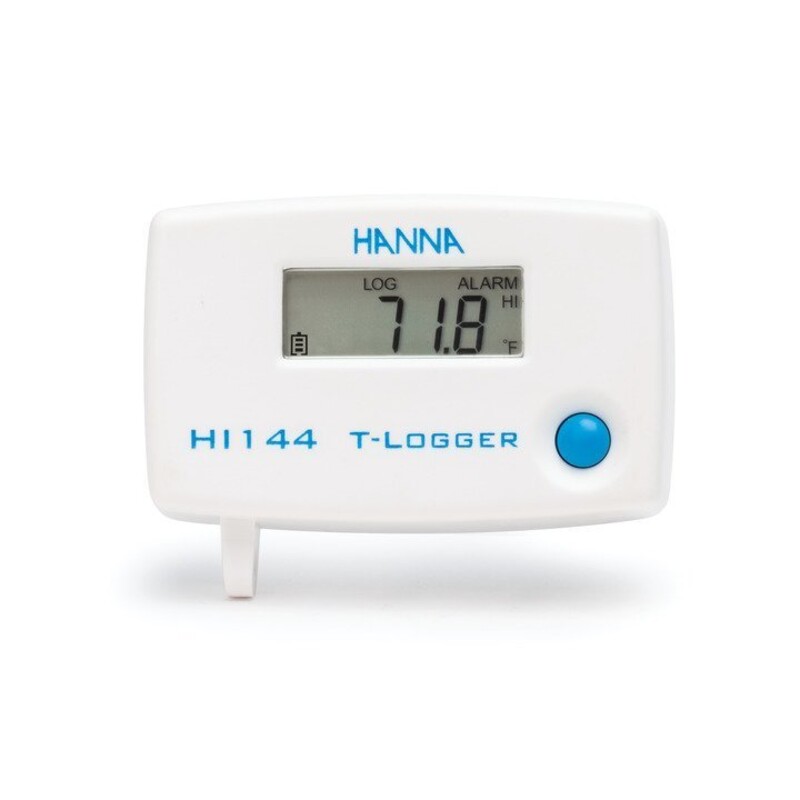

Temperature T-Logger with wall cradle and lock
HI144

The HI144 is a waterproof, temperature data logger that can be programmed to log data from 1 minute to 24 hours interval by using the docking cradle and PC software. Other programming options include high and low alarms and a choice of how the data logging starts.

• Stores up to 8,000 measurements.
• 2-year battery life.
• Programmable high and low alarms.
• Not suitable for body temperature measurements

Temperature T-Logger

The monitoring of environmental temperature is very important for many different applications. For cold food storage it is necessary to ensure that the product is always stored properly to maintain quality and for safety to prevent bacteria growth. The monitoring of temperature is critical through all stages in food distribution. This includes from the time it is packaged and stored to transportation to the local market or restaurant.  The HI144-10 will help to be compliant in recording temperatures as part of a HACCP monitoring program.

For building maintenance these loggers can track the environmental temperatures of an office or warehouse to ensure that heating or air conditioning thermostats are programmed correctly and that the hot or cold air is distributed evenly.

All of the programming is done through a USB docking cradle and PC software. The PC software offers graphical user interface for customizing the settings of the data logger. Once programmed the data logger can be set to start by using the PC, at a specific date/time, by push button start on the logger itself.

Meter Features/Benefits:

•  Compact waterproof data logger
• LCD displays temperature, high and low alarms, logging status and battery indicator
• Wall mount with lock
• USB docking cradle for programming and transferring of data

 Programming options

• Choice of start: From the PC, a specific date/time, or push button on T-Logger
• Choice of measurement units:  oC or oF to display on LCD
• High and low alarm set points with indicators on LCD
• Selectable logging interval in minutes and hours
• Choice of data management: Store until full, fixed number or wrap around

 Instrument status review

• Battery life and days used
• Serial number of device
• Programmed device settings

 PC software

• Graphic user interface to program settings
• Data export as an .xls file
• Built in graphing that can be scaled with quick reference to programmed high and low alarm
